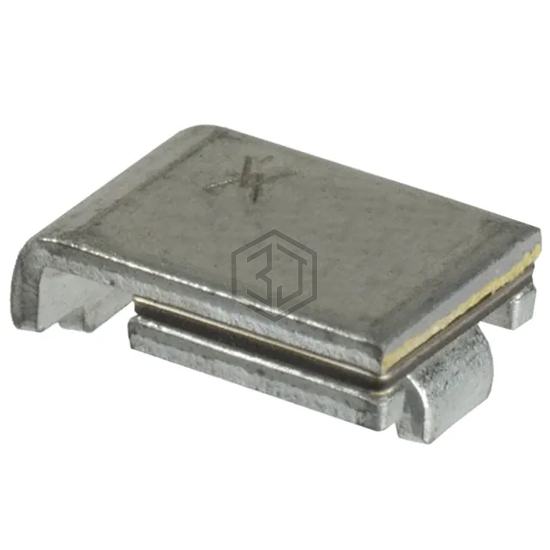

PTC RESET FUSE 15V 3A 2SMD
SMD300F/15-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 15V 3A 2SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2-SMD, current - max 40 A.
In Stock: 31,640
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 3 A |
| Current - Trip (It) | 6 A |
| Time to Trip | 35 s |
| Resistance - Initial (Ri) (Min) | 15 mOhms |
| Resistance - Post Trip (R1) (Max) | 50 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.118" (3.00mm) |
| Lead Spacing | - |
Submit your RFQ for SMD300F/15-2 and get a quote within 24 hours.
