S8055RTP
SCR 800V 55A TO220

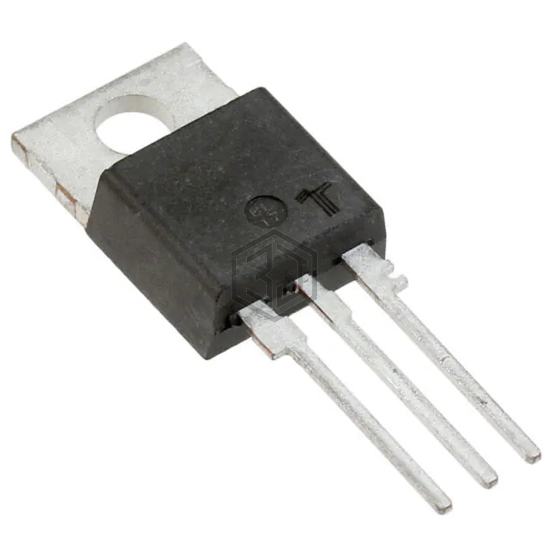

S8055RTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 800V 55A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-3.
In Stock: 1,591
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 800 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 40 mA |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - On State (It (AV)) (Max) | 35 A |
| Current - On State (It (RMS)) (Max) | 55 A |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Off State (Max) | 20 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 Non-Isolated Tab |
Frequently Asked Questions
S8055RTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 800V 55A TO220
The mounting type of S8055RTP is Through Hole.
The operating temperature range of S8055RTP is -40°C ~ 125°C.
The package type of S8055RTP is TO-220-3.
