SCR 600V 800MA COMPAK

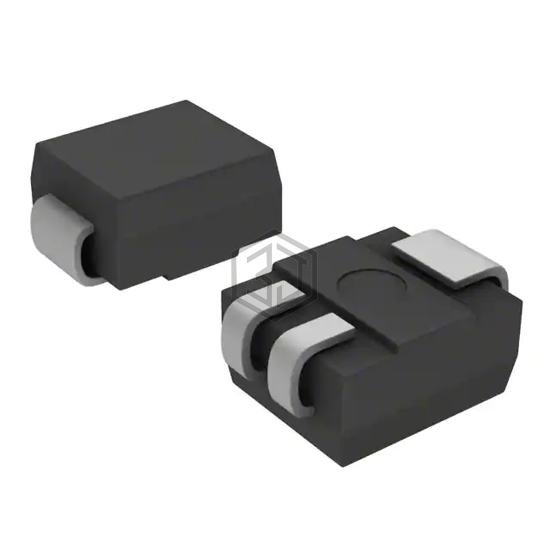

S6SRP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 600V 800MA COMPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, package / case DO-214AA, SMB (3 Leads), Compak.
In Stock: 6,498
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 600 V |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - On State (It (AV)) (Max) | 510 mA |
| Current - On State (It (RMS)) (Max) | 800 mA |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Off State (Max) | 1 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 16A, 20A |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB (3 Leads), Compak |
| Supplier Device Package | Compak |
