3J LIMITED

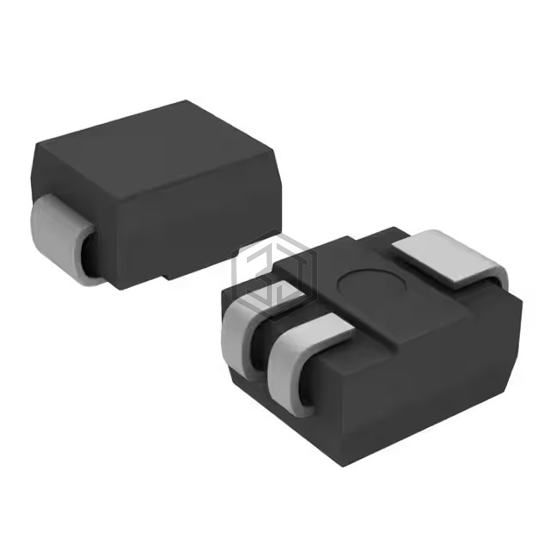

S602CSRP
SCR 1.5A 600V COMPAK
S602CSRP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 1.5A 600V COMPAK. Key specifications: operating temperature -40°C ~ 125°C (TJ).
In Stock: 443
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 600 V |
| Voltage - Gate Trigger (Vgt) (Max) | 0.8 V |
| Current - Gate Trigger (Igt) (Max) | 100 µA |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - On State (It (AV)) (Max) | 0.95 A |
| Current - On State (It (RMS)) (Max) | 1.5 A |
| Current - Hold (Ih) (Max) | 3 mA |
| Current - Off State (Max) | - |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 12.5A, 15A |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | - |
| Package / Case | - |
| Supplier Device Package | - |
Frequently Asked Questions
S602CSRP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 1.5A 600V COMPAK
The operating temperature range of S602CSRP is -40°C ~ 125°C (TJ).
