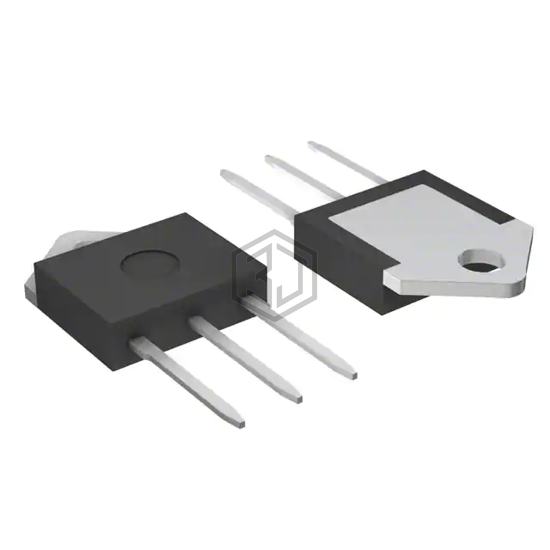

S4055MTP
SCR 400V 55A TO218
S4055MTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 400V 55A TO218. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-218-3, TO-218AC.
In Stock: 20
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 400 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 40 mA |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - On State (It (AV)) (Max) | 35 A |
| Current - On State (It (RMS)) (Max) | 55 A |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Off State (Max) | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-218-3, TO-218AC |
| Supplier Device Package | TO-218 Non-Isolated Tab |
Frequently Asked Questions
S4055MTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 400V 55A TO218
The mounting type of S4055MTP is Through Hole.
The operating temperature range of S4055MTP is -40°C ~ 125°C.
The package type of S4055MTP is TO-218-3, TO-218AC.
