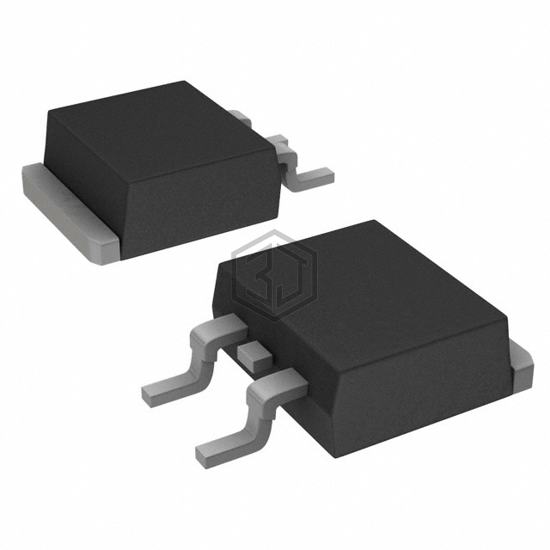

SCR 400V 8A TO263
S4008NRP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 400V 8A TO263. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.
In Stock: 5,038
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 400 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - On State (It (AV)) (Max) | 5.1 A |
| Current - On State (It (RMS)) (Max) | 8 A |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Off State (Max) | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 83A, 100A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D²Pak) |
Submit your RFQ for S4008NRP and get a quote within 24 hours.
