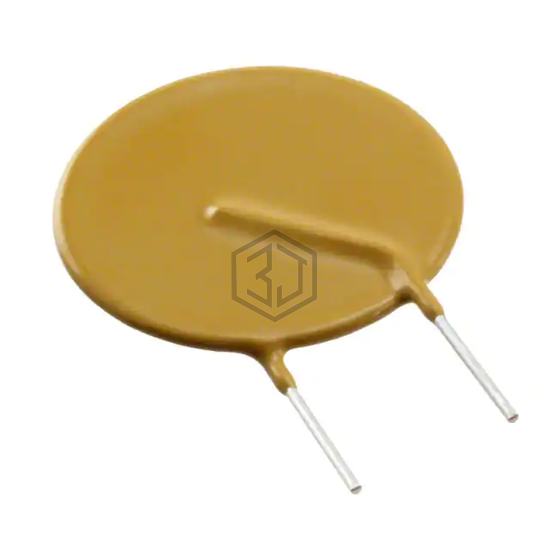

RXEF375-1 - Littelfuse Inc. - PTC Resettable Fuses

RXEF375-1

Littelfuse Inc.

PTC RESET FUSE 72V 3.75A RADIAL

RXEF375-1 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 72V 3.75A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 40 A.

In Stock: 154

Product Attributes

AttributeValue
Product StatusActive
TypePolymeric
Voltage - Max72V
Current - Max40 A
Current - Hold (Ih) (Max)3.75 A
Current - Trip (It)7.5 A
Time to Trip24 s
Resistance - Initial (Ri) (Min)30 mOhms
Resistance - Post Trip (R1) (Max)80 mOhms
Resistance - 25°C (Typ)-
Operating Temperature-40°C ~ 85°C
Ratings-
Mounting TypeThrough Hole
Package / CaseRadial, Disc
Size / Dimension1.071" Dia x 0.118" T (27.20mm x 3.00mm)
Height - Seated (Max)1.252" (31.80mm)
Thickness (Max)-
Lead Spacing0.400" (10.15mm)

Frequently Asked Questions

RXEF375-1 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 72V 3.75A RADIAL

The mounting type of RXEF375-1 is Through Hole.

The operating temperature range of RXEF375-1 is -40°C ~ 85°C.

The package type of RXEF375-1 is Radial, Disc.
