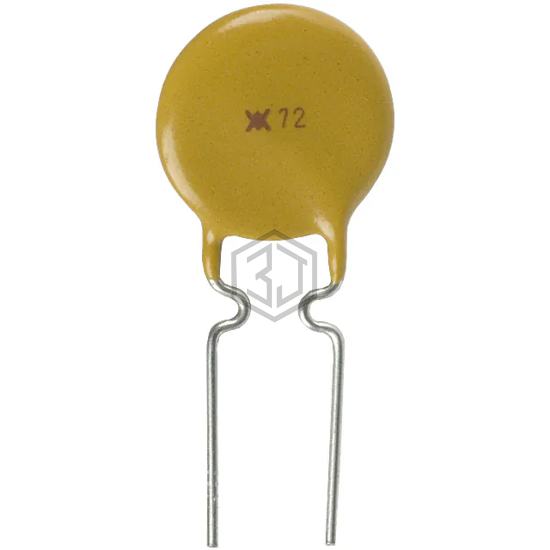

PTC RESET FUSE 72V 900MA RADIAL
RXEF090 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 72V 900MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 40 A.
In Stock: 11,021
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 72V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 900 mA |
| Current - Trip (It) | 1.8 A |
| Time to Trip | 7.2 s |
| Resistance - Initial (Ri) (Min) | 200 mOhms |
| Resistance - Post Trip (R1) (Max) | 470 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.441" Dia x 0.118" T (11.20mm x 3.00mm) |
| Height - Seated (Max) | 0.622" (15.80mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.199" (5.05mm) |
