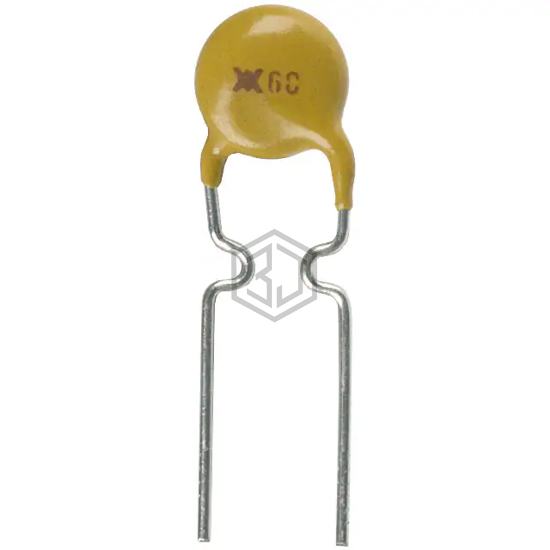

PTC RESET FUSE 60V 170MA RADIAL
RXEF017-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 60V 170MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 40 A.
In Stock: 502
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 170 mA |
| Current - Trip (It) | 340 mA |
| Time to Trip | 3 s |
| Resistance - Initial (Ri) (Min) | 3.3 Ohms |
| Resistance - Post Trip (R1) (Max) | 8 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.291" L x 0.118" W (7.40mm x 3.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.200" (5.08mm) |
