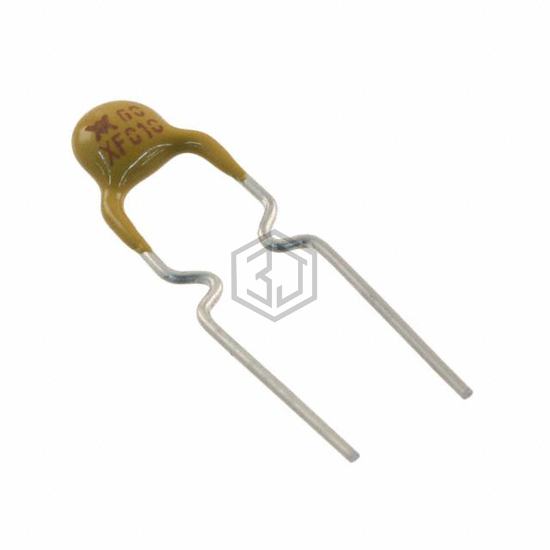

PTC RESET FUSE 60V 100MA RADIAL
RXEF010S is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 60V 100MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 40 A.
In Stock: 180
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Trip (It) | 200 mA |
| Time to Trip | 4 s |
| Resistance - Initial (Ri) (Min) | 2.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 7.5 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Height - Seated (Max) | 0.457" (11.60mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.199" (5.05mm) |
