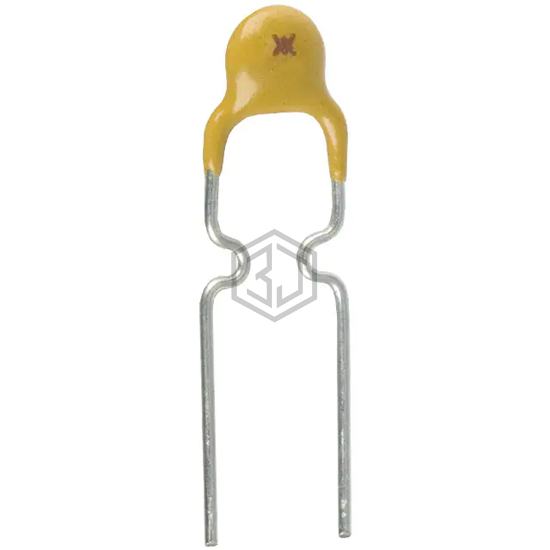

PTC RESET FUSE 6V 1.55A RADIAL
RUSBF155-AP is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 6V 1.55A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 40 A.
In Stock: 1,755
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 1.55 A |
| Current - Trip (It) | 2.65 A |
| Time to Trip | 2.2 s |
| Resistance - Initial (Ri) (Min) | 40 mOhms |
| Resistance - Post Trip (R1) (Max) | 100 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.272" Dia x 0.122" T (6.90mm x 3.10mm) |
| Height - Seated (Max) | 0.461" (11.70mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.201" (5.10mm) |
