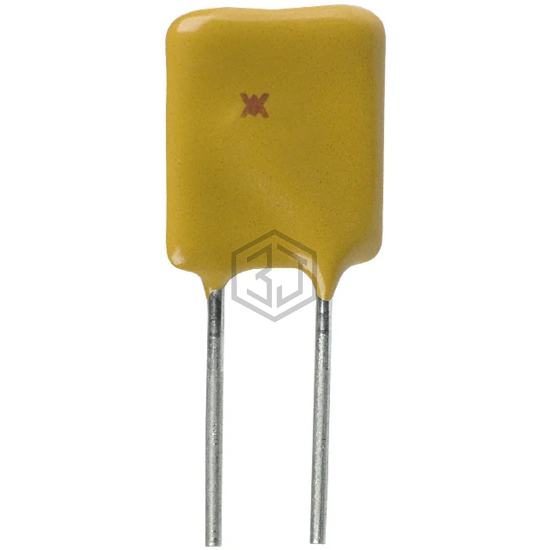

PTC RESET FUSE 30V 8A RADIAL
RUEF800K is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 30V 8A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 100 A.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 8 A |
| Current - Trip (It) | 16 A |
| Time to Trip | 18.8 s |
| Resistance - Initial (Ri) (Min) | 5 mOhms |
| Resistance - Post Trip (R1) (Max) | 20 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.850" L x 0.118" W (21.60mm x 3.00mm) |
| Height - Seated (Max) | 1.189" (30.20mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.400" (10.15mm) |
Submit your RFQ for RUEF800K and get a quote within 24 hours.
