PTC RESET FUSE 30V 4A RADIAL

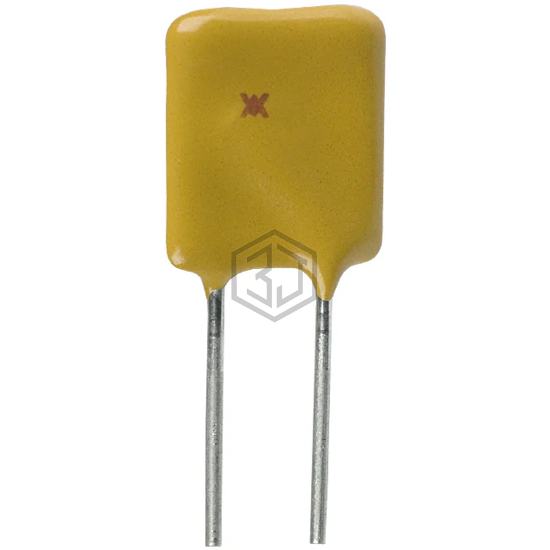

RUEF400-AP is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 30V 4A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 100 A.
In Stock: 769
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 4 A |
| Current - Trip (It) | 8 A |
| Time to Trip | 12.7 s |
| Resistance - Initial (Ri) (Min) | 10 mOhms |
| Resistance - Post Trip (R1) (Max) | 50 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.551" L x 0.118" W (14.00mm x 3.00mm) |
| Height - Seated (Max) | 0.760" (19.30mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.199" (5.05mm) |
Submit your RFQ for RUEF400-AP and get a quote within 24 hours.
