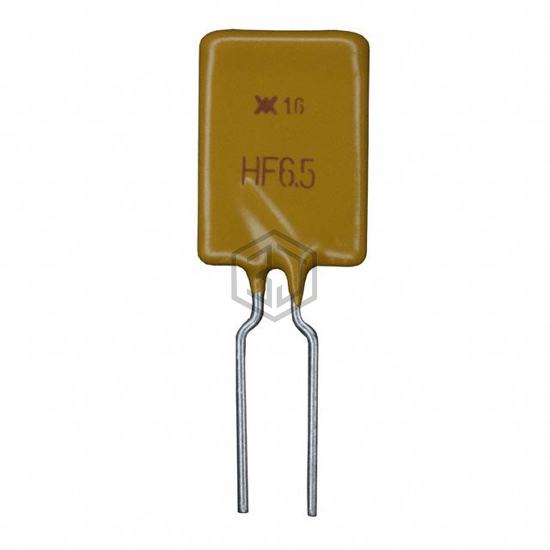

RHEF650 - Littelfuse Inc. - PTC Resettable Fuses

RHEF650

Littelfuse Inc.

PTC RESET FUSE 16V 6.5A RADIAL

RHEF650 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 6.5A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Disc, current - max 100 A.

In Stock: 1

Product Attributes

AttributeValue
Product StatusActive
TypePolymeric
Voltage - Max16V
Current - Max100 A
Current - Hold (Ih) (Max)6.5 A
Current - Trip (It)12 A
Time to Trip5.5 s
Resistance - Initial (Ri) (Min)11 mOhms
Resistance - Post Trip (R1) (Max)26 mOhms
Resistance - 25°C (Typ)-
Operating Temperature-40°C ~ 125°C
Ratings-
Mounting TypeThrough Hole
Package / CaseRadial, Disc
Size / Dimension0.500" L x 0.118" W (12.70mm x 3.00mm)
Height - Seated (Max)0.874" (22.20mm)
Thickness (Max)-
Lead Spacing0.199" (5.05mm)

Frequently Asked Questions

RHEF650 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 6.5A RADIAL

The mounting type of RHEF650 is Through Hole.

The operating temperature range of RHEF650 is -40°C ~ 125°C.

The package type of RHEF650 is Radial, Disc.
