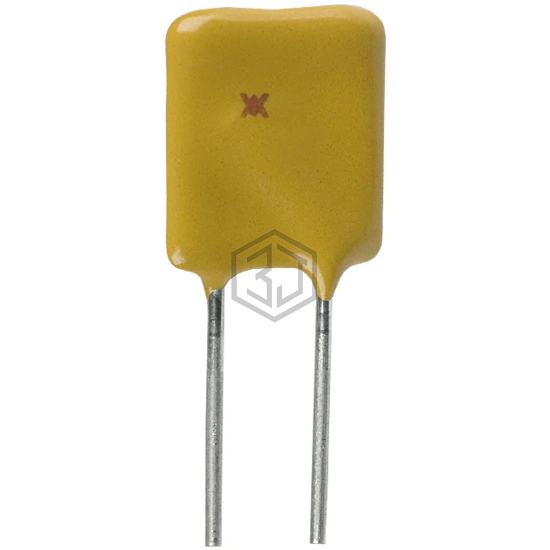

PTC RESET FUSE 16V 3A RADIAL
RHEF300 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 3A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Disc, current - max 100 A.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 3 A |
| Current - Trip (It) | 6 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 33 mOhms |
| Resistance - Post Trip (R1) (Max) | 79 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) |
| Height - Seated (Max) | 0.543" (13.80mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.199" (5.05mm) |
Submit your RFQ for RHEF300 and get a quote within 24 hours.
