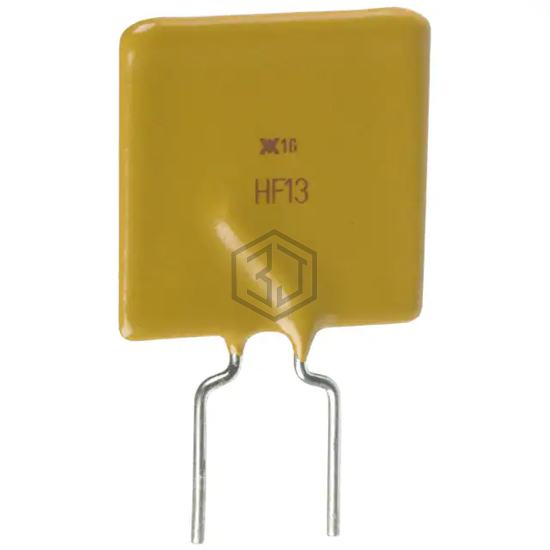

PTC RESET FUSE 16V 13A RADIAL
RHEF1300 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 13A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Disc, current - max 100 A.
In Stock: 407
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 13 A |
| Current - Trip (It) | 24 A |
| Time to Trip | 13 s |
| Resistance - Initial (Ri) (Min) | 4.1 mOhms |
| Resistance - Post Trip (R1) (Max) | 10 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.925" L x 0.142" W (23.50mm x 3.60mm) |
| Height - Seated (Max) | 1.130" (28.70mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.400" (10.15mm) |
Submit your RFQ for RHEF1300 and get a quote within 24 hours.
