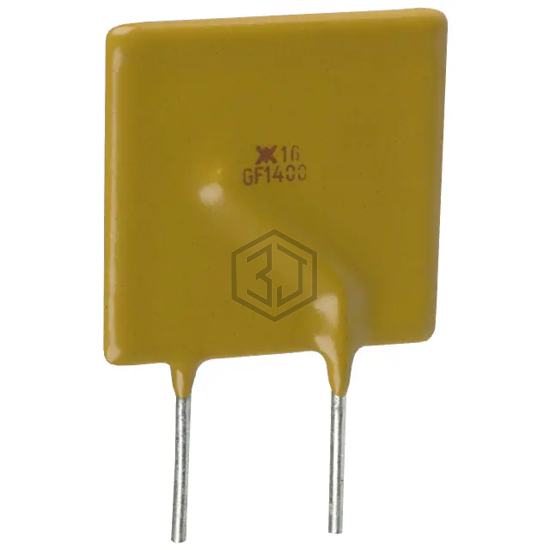

PTC RESET FUSE 16V 14A RADIAL
RGEF1400-1 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 14A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 100 A.
In Stock: 135
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 14 A |
| Current - Trip (It) | 23.8 A |
| Time to Trip | 9 s |
| Resistance - Initial (Ri) (Min) | 2.6 mOhms |
| Resistance - Post Trip (R1) (Max) | 6.4 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.925" L x 0.114" W (23.50mm x 2.90mm) |
| Height - Seated (Max) | 1.098" (27.90mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.400" (10.15mm) |
Submit your RFQ for RGEF1400-1 and get a quote within 24 hours.
