PTC RESET FUSE 15V 120MA 0805

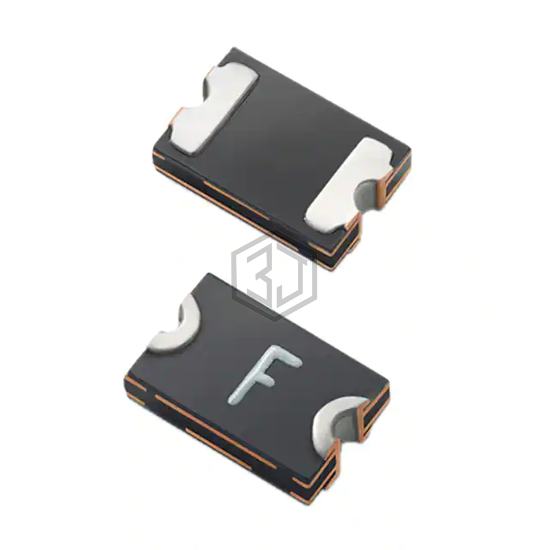

PICOASMDC012S-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 15V 120MA 0805. Key specifications: mounting type Surface Mount, package / case 0805 (2012 Metric), current - max 20 A, size / dimension 0.083" L x 0.055" W (2.10mm x 1.40mm).
In Stock: 1,170
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Max | 20 A |
| Current - Hold (Ih) (Max) | 120 mA |
| Current - Trip (It) | 300 mA |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 1.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 9 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | - |
| Ratings | PS300, PS400 |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.083" L x 0.055" W (2.10mm x 1.40mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.027" (0.68mm) |
| Lead Spacing | - |
Submit your RFQ for PICOASMDC012S-2 and get a quote within 24 hours.
