PTC RESET FUSE 30V 350MA 1206

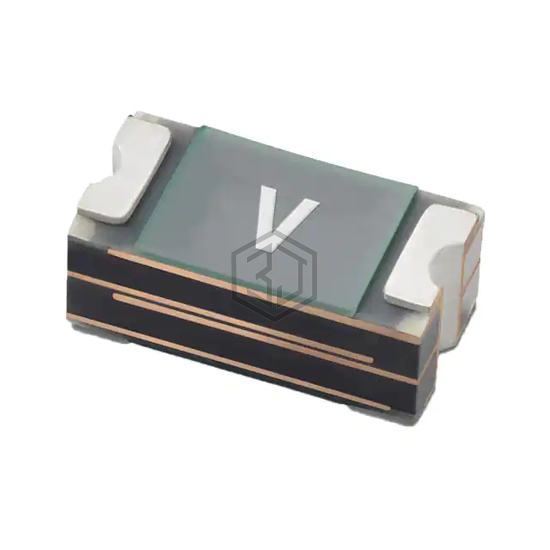

NANOASMDCH035F/30-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 30V 350MA 1206. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1206 (3216 Metric), Concave, current - max 20 A.
In Stock: 4,281
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Max | 20 A |
| Current - Hold (Ih) (Max) | 350 mA |
| Current - Trip (It) | 1.75 A |
| Time to Trip | 200 ms |
| Resistance - Initial (Ri) (Min) | 400 mOhms |
| Resistance - Post Trip (R1) (Max) | 2.2 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.126" L x 0.062" W (3.20mm x 1.58mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.045" (1.14mm) |
| Lead Spacing | - |
Submit your RFQ for NANOASMDCH035F/30-2 and get a quote within 24 hours.
