SWITCH REED SPST-NO 700MA 140V

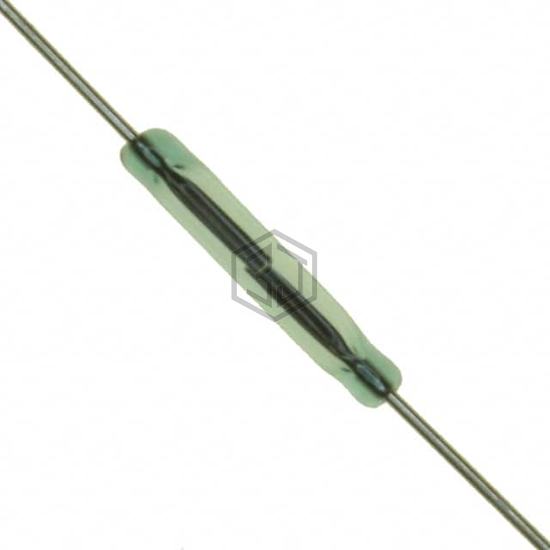

MLRR-4-22-28 is a Magnetic, Reed Switches manufactured by Littelfuse Inc.. SWITCH REED SPST-NO 700MA 140V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, termination style Axial, power - rated 20W.
In Stock: 850
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 22 ~ 28AT |
| Release Range | - |
| Current - Switching | 700mA (AC), 1A (DC) |
| Voltage - Switching AC | 140 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 20W |
| Operate Time | 0.6 ms |
| Release Time | 0.2 ms |
| Mounting Type | Through Hole |
| Termination Style | Axial |
| Length - Overall | 1.590" (40.39mm) |
| Size - Body | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) |
| Height Above Board | - |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | 0.4 pF |
| Current - Carry | 1A (DC) |
Submit your RFQ for MLRR-4-22-28 and get a quote within 24 hours.
