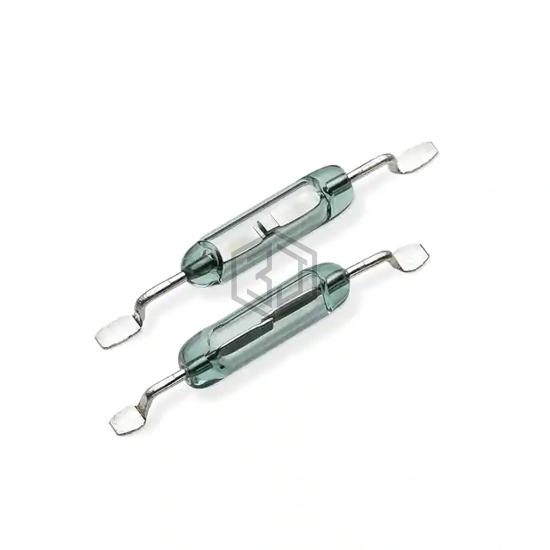

SWITCH REED 7MM 15-20AT 10W SMD
MISM-7R-15-20 is a Magnetic, Reed Switches manufactured by Littelfuse Inc.. SWITCH REED 7MM 15-20AT 10W SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, termination style Gull Wing, power - rated 10W.
In Stock: 2,055
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 15 ~ 20AT |
| Release Range | - |
| Current - Switching | 180mA (AC), 250mA (DC) |
| Voltage - Switching AC | 120 V |
| Voltage - Switching DC | 170 V |
| Power - Rated | 10W |
| Operate Time | 450 µs |
| Release Time | 0.2 ms |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Length - Overall | 0.540" (13.72mm) |
| Size - Body | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) |
| Height Above Board | 0.090" (2.28mm) |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | 0.3 pF |
| Current - Carry | 500mA (DC) |
