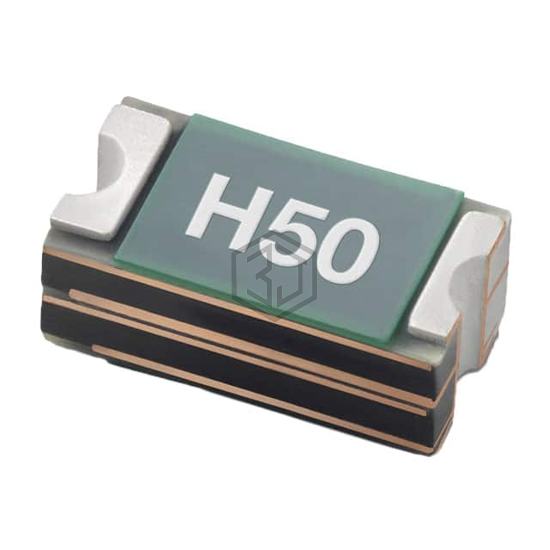

PTC RESET FUSE 0.50A 30V 1812
MINIASMDCH050F-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 0.50A 30V 1812. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1812 (4532 Metric), Concave, current - max 20 A.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Max | 20 A |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Trip (It) | 1.6 A |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 200 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.35 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.181" L x 0.128" W (4.60mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.032" (0.82mm) |
| Lead Spacing | - |
