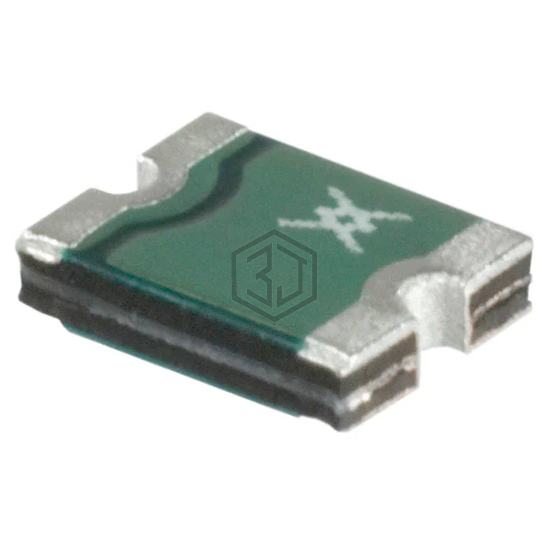

PTC RESET FUSE 6V 1.75A 1210
MICROSMD175F-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 6V 1.75A 1210. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1210 (3225 Metric), Concave, current - max 40 A.
In Stock: 94,053
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 1.75 A |
| Current - Trip (It) | 3.5 A |
| Time to Trip | 800 ms |
| Resistance - Initial (Ri) (Min) | 25 mOhms |
| Resistance - Post Trip (R1) (Max) | 80 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.030" (0.76mm) |
| Lead Spacing | - |
Submit your RFQ for MICROSMD175F-2 and get a quote within 24 hours.
