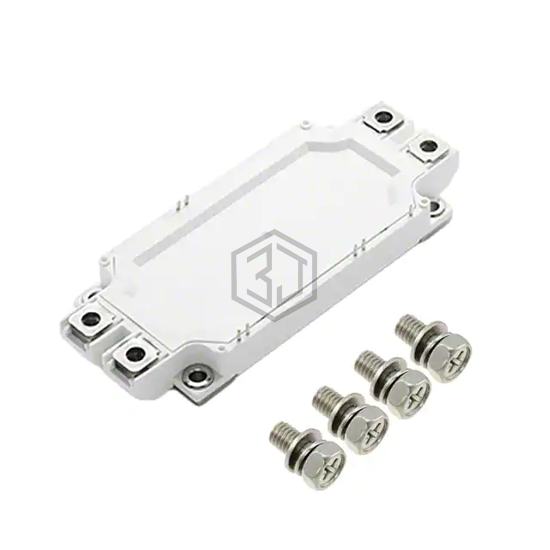

IGBT MODULE 1200V 750A 2500W WB
MG12600WB-BR2MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 1200V 750A 2500W WB. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 750 A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench Field Stop |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 750 A |
| Power - Max | 2500 W |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 600A |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | 60.5 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | WB |
Submit your RFQ for MG12600WB-BR2MM and get a quote within 24 hours.
