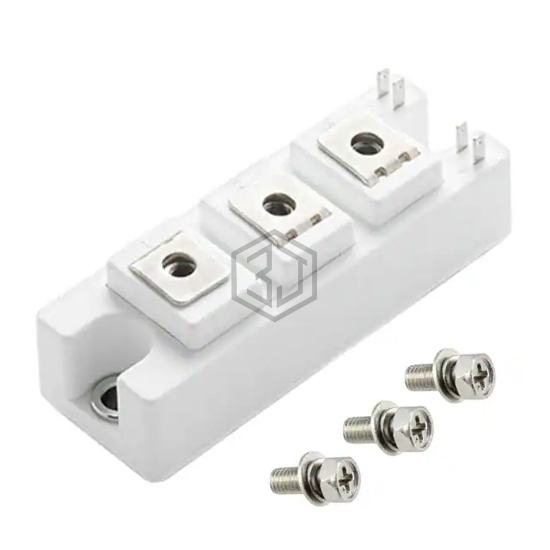

IGBT MODULE 1200V 80A 500W S3
MG1250S-BA1MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 1200V 80A 500W S3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case S-3 Module, current - collector (ic) (max) 80 A.
In Stock: 8,049
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 80 A |
| Power - Max | 500 W |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 50A (Typ) |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 4.29 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | S-3 Module |
| Supplier Device Package | S3 |
Submit your RFQ for MG1250S-BA1MM and get a quote within 24 hours.
