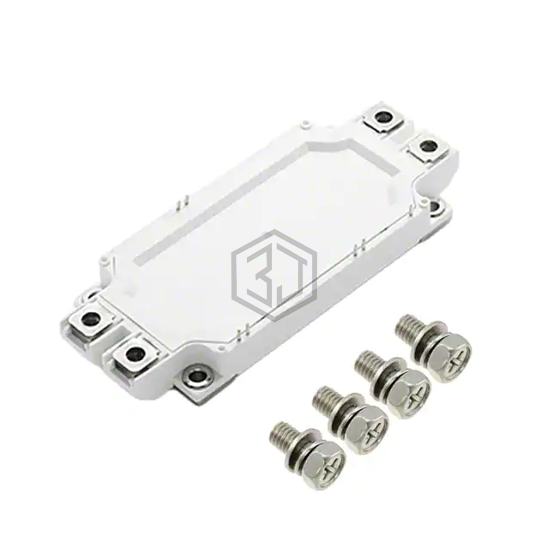

IGBT MODULE 1200V 600A 1950W WB
MG12450WB-BN2MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 1200V 600A 1950W WB. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module, current - collector (ic) (max) 600 A.
In Stock: 5,553
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench Field Stop |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 600 A |
| Power - Max | 1950 W |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 450A (Typ) |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 32 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | WB |
Submit your RFQ for MG12450WB-BN2MM and get a quote within 24 hours.
