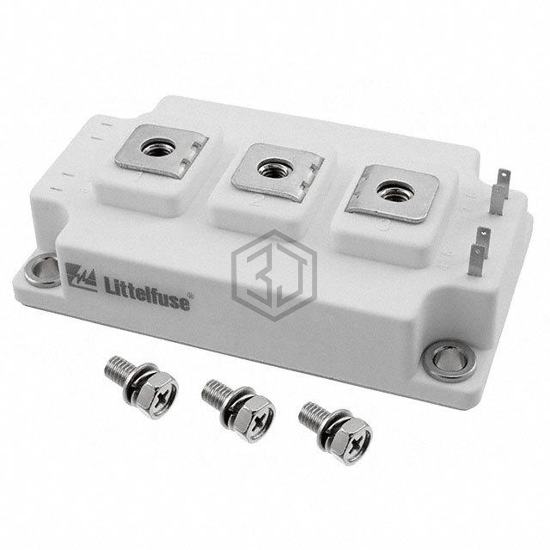

IGBT MODULE 1200V 580A 1925W D3
MG12400D-BN2MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 1200V 580A 1925W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module, current - collector (ic) (max) 580 A.
In Stock: 7,065
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench Field Stop |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 580 A |
| Power - Max | 1925 W |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 400A (Typ) |
| Current - Collector Cutoff (Max) | 2 mA |
| Input Capacitance (Cies) @ Vce | 28 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | D3 |
Submit your RFQ for MG12400D-BN2MM and get a quote within 24 hours.
