SWITCH REED SPST-NO 500MA 200V

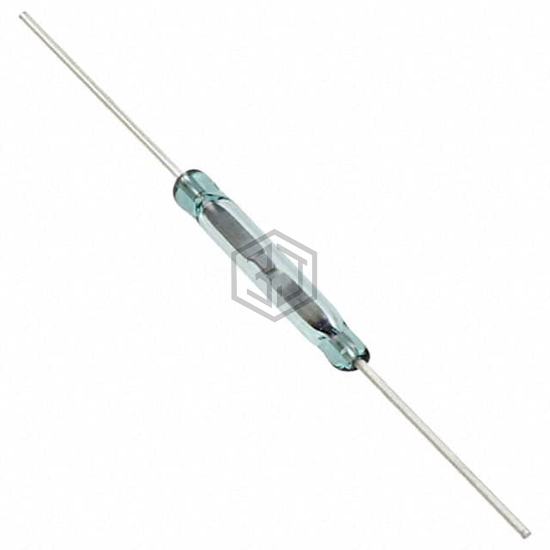

MDSR-4-22-38 is a Magnetic, Reed Switches manufactured by Littelfuse Inc.. SWITCH REED SPST-NO 500MA 200V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, termination style Axial, power - rated 10W.
In Stock: 675
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 22 ~ 38AT |
| Release Range | - |
| Current - Switching | 500mA (DC) |
| Voltage - Switching AC | - |
| Voltage - Switching DC | 200 V |
| Power - Rated | 10W |
| Operate Time | 0.6 ms |
| Release Time | 0.2 ms |
| Mounting Type | Through Hole |
| Termination Style | Axial |
| Length - Overall | 1.590" (40.39mm) |
| Size - Body | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) |
| Height Above Board | - |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | 0.2 pF |
| Current - Carry | 1.2A (DC) |
Submit your RFQ for MDSR-4-22-38 and get a quote within 24 hours.
