SWITCH REED SPST-NO 350MA 140V

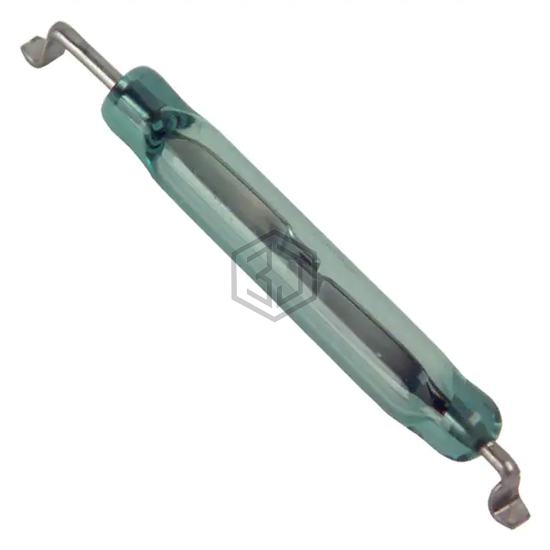

MDSM-4B-27-33 is a Magnetic, Reed Switches manufactured by Littelfuse Inc.. SWITCH REED SPST-NO 350MA 140V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, termination style Gull Wing, power - rated 10W.
In Stock: 957
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 27 ~ 33AT |
| Release Range | - |
| Current - Switching | 350mA (AC), 500mA (DC) |
| Voltage - Switching AC | 140 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 10W |
| Operate Time | 0.6 ms |
| Release Time | 0.2 ms |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Length - Overall | 0.760" (19.30mm) |
| Size - Body | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) |
| Height Above Board | 0.112" (2.85mm) |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | 0.2 pF |
| Current - Carry | 1.2A (DC) |
Submit your RFQ for MDSM-4B-27-33 and get a quote within 24 hours.
