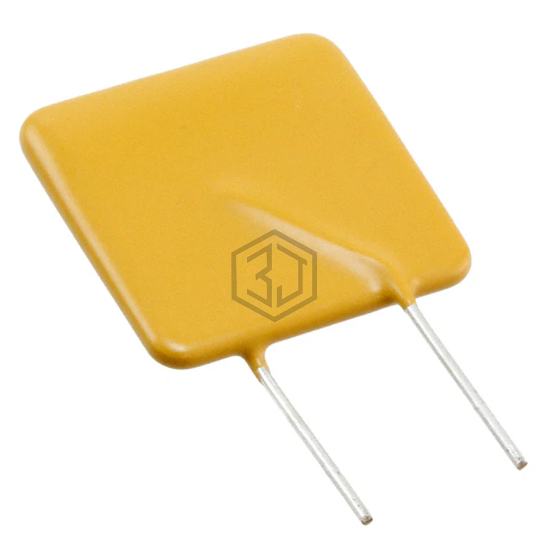

PTC RESET FUSE 240V 2A RADIAL
LVR200S-240 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 240V 2A RADIAL. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, package / case Radial, Disc, current - max 20 A.
In Stock: 7,535
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 240V (265V Int) |
| Current - Max | 20 A |
| Current - Hold (Ih) (Max) | 2 A |
| Current - Trip (It) | 4 A |
| Time to Trip | 28 s |
| Resistance - Initial (Ri) (Min) | 89 mOhms |
| Resistance - Post Trip (R1) (Max) | 221 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -20°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.980" L x 0.240" W (24.90mm x 6.10mm) |
| Height - Seated (Max) | 1.331" (33.80mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.400" (10.15mm) |
