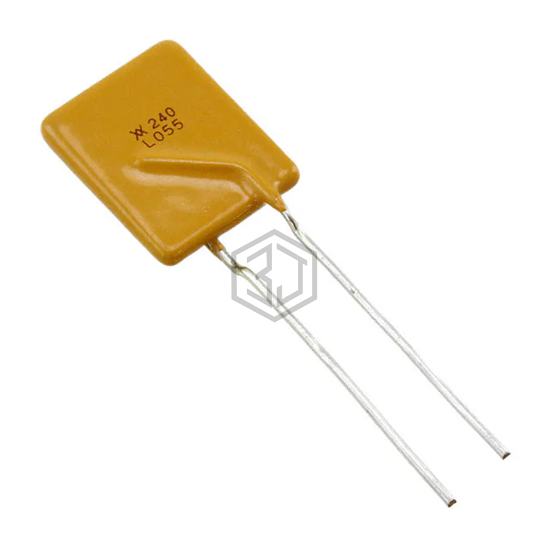

PTC RESET FUSE 240V 550MA RADIAL
LVR055K is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 240V 550MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, package / case Radial, Disc, current - max 7 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 240V (265V Int) |
| Current - Max | 7 A |
| Current - Hold (Ih) (Max) | 550 mA |
| Current - Trip (It) | 1.25 A |
| Time to Trip | 26 s |
| Resistance - Initial (Ri) (Min) | 450 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.45 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -20°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.551" L x 0.161" W (14.00mm x 4.10mm) |
| Height - Seated (Max) | 0.822" (20.87mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.199" (5.05mm) |
Submit your RFQ for LVR055K and get a quote within 24 hours.
