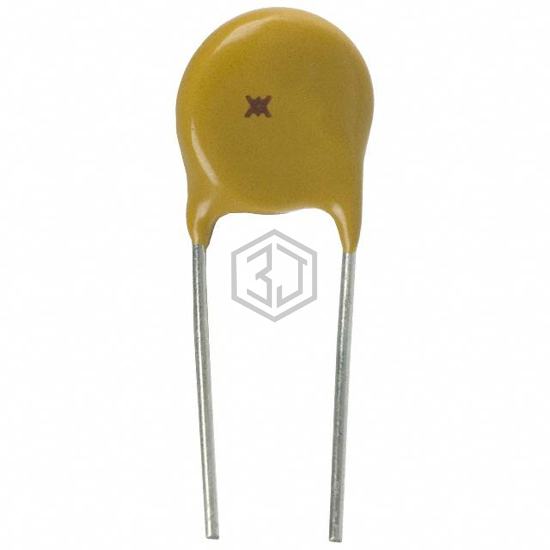

PTC RESET FUSE 240V 160MA RADIAL
LVR016K is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 240V 160MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, package / case Radial, Disc, current - max 2 A.
In Stock: 162
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 240V (265V Int) |
| Current - Max | 2 A |
| Current - Hold (Ih) (Max) | 160 mA |
| Current - Trip (It) | 370 mA |
| Time to Trip | 15 s |
| Resistance - Initial (Ri) (Min) | 2.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 7.8 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -20°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) |
| Height - Seated (Max) | 0.543" (13.80mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.200" (5.08mm) |
Submit your RFQ for LVR016K and get a quote within 24 hours.
