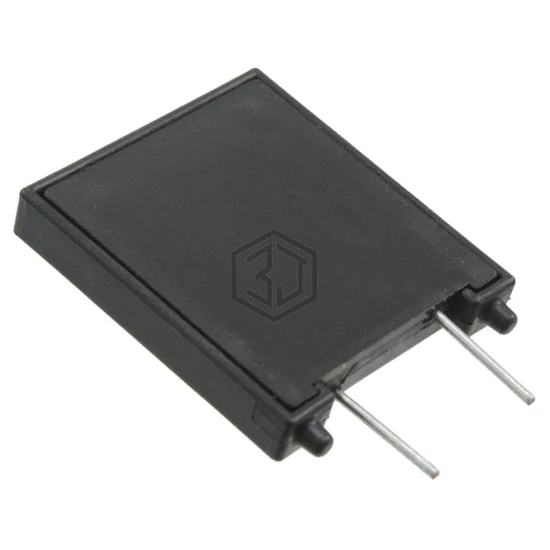

PTC RESET FUSE 240V 1.25A RADIAL
LVB125 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 240V 1.25A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 12.5 A.
In Stock: 70
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 240V |
| Current - Max | 12.5 A |
| Current - Hold (Ih) (Max) | 1.25 A |
| Current - Trip (It) | 2.5 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 152 mOhms |
| Resistance - Post Trip (R1) (Max) | 482 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.984" L x 0.175" W (25.00mm x 4.40mm) |
| Height - Seated (Max) | 1.071" (27.20mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.400" (10.15mm) |
