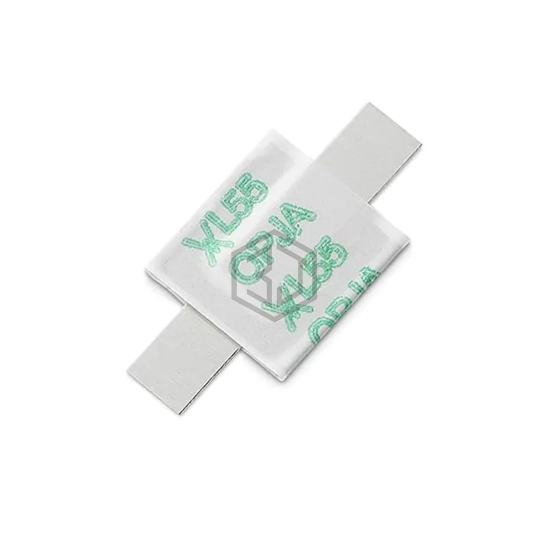

PTC RESET FUSE 16V 5.5A
LSP550 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 5.5A. Key specifications: mounting type User Defined, operating temperature -40°C ~ 85°C, package / case Strap, current - max 50 A.
In Stock: 9,878
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 50 A |
| Current - Hold (Ih) (Max) | 5.5 A |
| Current - Trip (It) | 10.2 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 8 mOhms |
| Resistance - Post Trip (R1) (Max) | 26 mOhms |
| Resistance - 25°C (Typ) | 13 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | User Defined |
| Package / Case | Strap |
| Size / Dimension | 0.787" L x 0.402" W (20.00mm x 10.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.035" (0.90mm) |
| Lead Spacing | - |
Submit your RFQ for LSP550 and get a quote within 24 hours.
