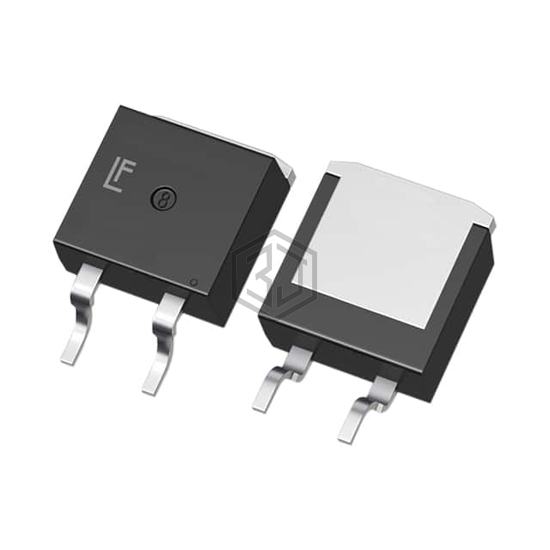

DIODE SCHOTTKY SIC 650V 10A
LSIC2SD065D10A is a Diodes - Rectifiers - Single manufactured by Littelfuse Inc.. DIODE SCHOTTKY SIC 650V 10A. Key specifications: mounting type Surface Mount, package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.
In Stock: 830
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 27A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 10 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 650 V |
| Capacitance @ Vr, F | 470pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D²Pak) |
| Operating Temperature - Junction | -55°C ~ 175°C |
Submit your RFQ for LSIC2SD065D10A and get a quote within 24 hours.
