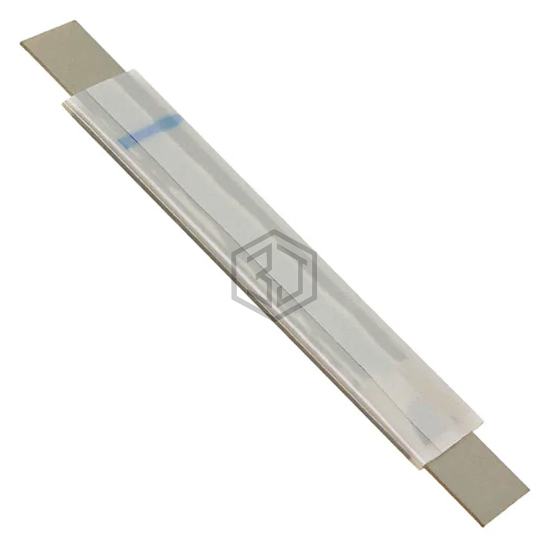

PTC RESET FUSE 20V 9A STRAP
LR4-900F is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 20V 9A STRAP. Key specifications: mounting type User Defined, operating temperature -40°C ~ 85°C, package / case Strap, current - max 100 A.
In Stock: 19,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 20V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 9 A |
| Current - Trip (It) | 16.7 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 6 mOhms |
| Resistance - Post Trip (R1) (Max) | 14 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | User Defined |
| Package / Case | Strap |
| Size / Dimension | 1.831" L x 0.323" W (46.50mm x 8.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.039" (1.00mm) |
| Lead Spacing | - |
Submit your RFQ for LR4-900F and get a quote within 24 hours.
