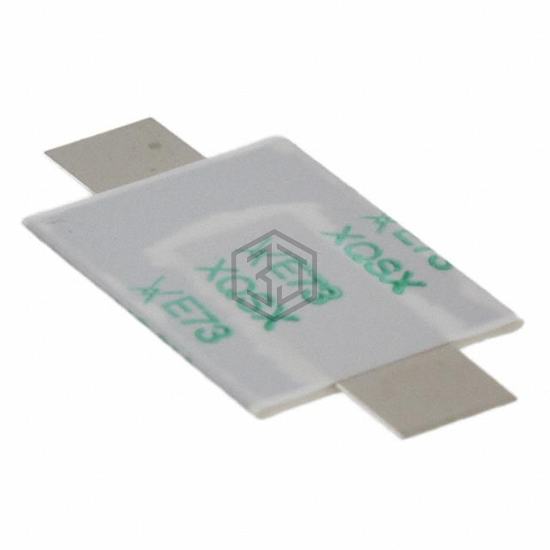

PTC RESET FUSE 20V 7.3A STRAP
LR4-730F is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 20V 7.3A STRAP. Key specifications: mounting type User Defined, operating temperature -40°C ~ 85°C, package / case Strap, current - max 100 A.
In Stock: 27,126
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 20V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 7.3 A |
| Current - Trip (It) | 14.1 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 6 mOhms |
| Resistance - Post Trip (R1) (Max) | 15 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | User Defined |
| Package / Case | Strap |
| Size / Dimension | 1.106" L x 0.559" W (28.10mm x 14.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.039" (1.00mm) |
| Lead Spacing | - |
