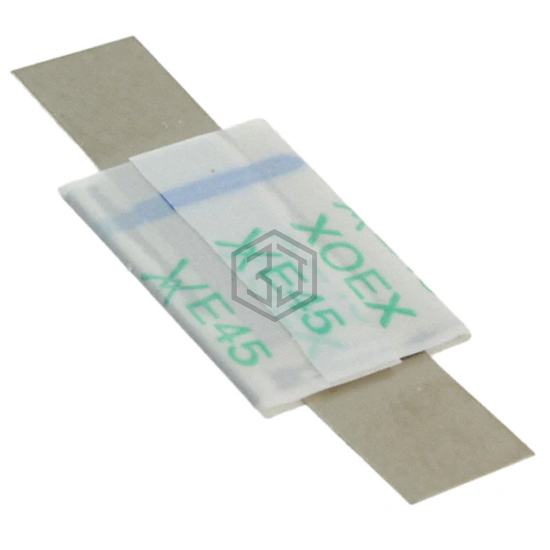

PTC RESET FUSE 20V 4.5A STRAP
LR4-450F is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 20V 4.5A STRAP. Key specifications: mounting type User Defined, operating temperature -40°C ~ 85°C, package / case Strap, current - max 100 A.
In Stock: 16,124
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 20V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 4.5 A |
| Current - Trip (It) | 8.9 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 11 mOhms |
| Resistance - Post Trip (R1) (Max) | 28 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | User Defined |
| Package / Case | Strap |
| Size / Dimension | 0.984" L x 0.413" W (25.00mm x 10.50mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.039" (1.00mm) |
| Lead Spacing | - |
