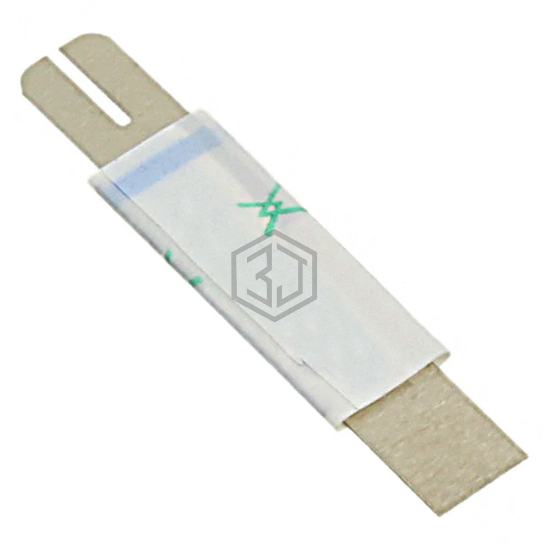

PTC RESET FUSE 15V 2.6A STRAP
LR4-260SF is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 15V 2.6A STRAP. Key specifications: mounting type User Defined, operating temperature -40°C ~ 85°C, package / case Strap, current - max 100 A.
In Stock: 462
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 2.6 A |
| Current - Trip (It) | 5.8 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | 63 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | User Defined |
| Package / Case | Strap |
| Size / Dimension | 0.866" L x 0.205" W (22.00mm x 5.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | - |
| Lead Spacing | - |
