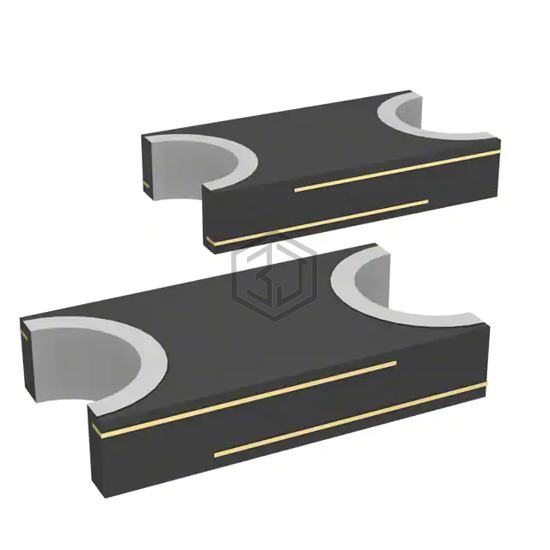

PTC RESET FUSE 15V 50MA 0603
FEMTOSMDC005F-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 15V 50MA 0603. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0603 (1608 Metric), Concave, current - max 40 A.
In Stock: 33,718
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Trip (It) | 150 mA |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 3.8 Ohms |
| Resistance - Post Trip (R1) (Max) | 30 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.033" (0.85mm) |
| Lead Spacing | - |
Submit your RFQ for FEMTOSMDC005F-2 and get a quote within 24 hours.
