SWITCH REED SPST-NO 2.1A 280V

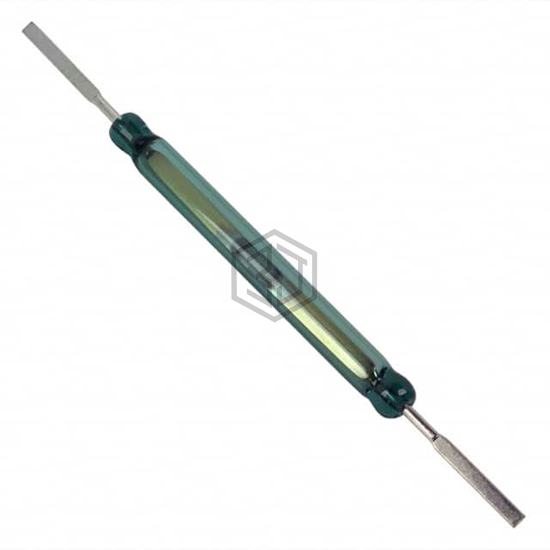

DRR-129-77-98 is a Magnetic, Reed Switches manufactured by Littelfuse Inc.. SWITCH REED SPST-NO 2.1A 280V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, termination style Axial, Flat, power - rated 100W.
In Stock: 4,760
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 77 ~ 98AT |
| Release Range | - |
| Current - Switching | 2.1A (AC), 3A (DC) |
| Voltage - Switching AC | 280 V |
| Voltage - Switching DC | 400 V |
| Power - Rated | 100W |
| Operate Time | 4.5 ms |
| Release Time | 2.5 ms |
| Mounting Type | Surface Mount |
| Termination Style | Axial, Flat |
| Length - Overall | 3.250" (82.55mm) |
| Size - Body | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) |
| Height Above Board | - |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | 0.6 pF |
| Current - Carry | 6A (DC) |
Submit your RFQ for DRR-129-77-98 and get a quote within 24 hours.
