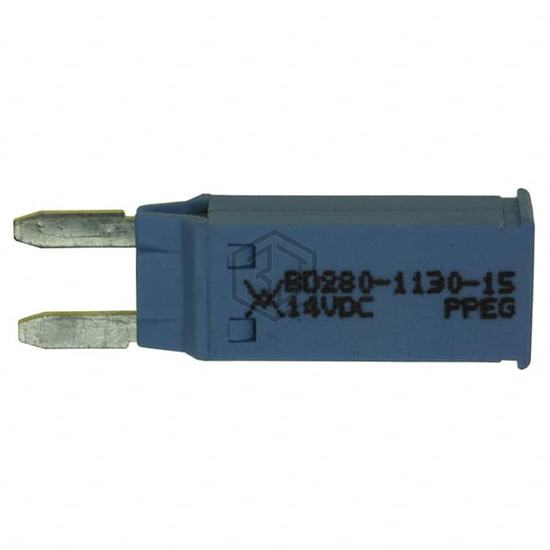

PTC RESET FUSE 14V 12A BLADE
BD280-1130-15/16 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 14V 12A BLADE. Key specifications: mounting type Holder, operating temperature -40°C ~ 125°C, package / case Blade Type, current - max 100 A.
In Stock: 302
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 14V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 12 A |
| Current - Trip (It) | 20 A |
| Time to Trip | 8 s |
| Resistance - Initial (Ri) (Min) | 5 mOhms |
| Resistance - Post Trip (R1) (Max) | 7 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Holder |
| Package / Case | Blade Type |
| Size / Dimension | 1.193" L x 0.433" W (30.30mm x 11.00mm) |
| Height - Seated (Max) | 0.262" (6.65mm) |
| Thickness (Max) | - |
| Lead Spacing | - |
Submit your RFQ for BD280-1130-15/16 and get a quote within 24 hours.
