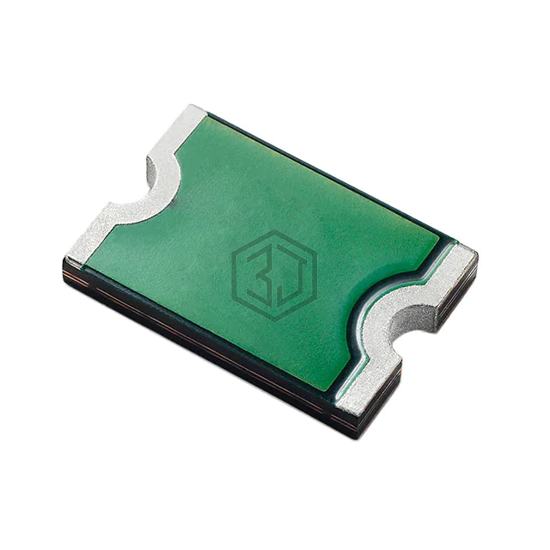

PTC RESET FUSE 60V 300MA 2SMD
ASMDC030F-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 60V 300MA 2SMD. Key specifications: mounting type Surface Mount, package / case 2-SMD, current - max 10 A, size / dimension 0.295" L x 0.201" W (7.50mm x 5.10mm).
In Stock: 8,534
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Max | 10 A |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Trip (It) | 600 mA |
| Time to Trip | 3 s |
| Resistance - Initial (Ri) (Min) | 300 mOhms |
| Resistance - Post Trip (R1) (Max) | 3.4 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | - |
| Ratings | PS300, PS400 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Size / Dimension | 0.295" L x 0.201" W (7.50mm x 5.10mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.035" (0.90mm) |
| Lead Spacing | - |
