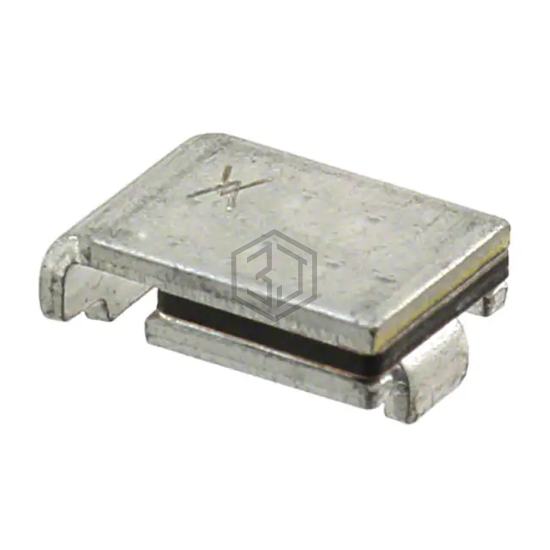

PTC RESET FUSE 16V 1.73A 2SMD
ASMD200F-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 1.73A 2SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2-SMD, current - max 40 A.
In Stock: 1,440
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 1.73 A |
| Current - Trip (It) | 3.93 A |
| Time to Trip | 30 s |
| Resistance - Initial (Ri) (Min) | 50 mOhms |
| Resistance - Post Trip (R1) (Max) | 120 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Size / Dimension | 0.343" L x 0.250" W (8.70mm x 6.36mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.118" (3.00mm) |
| Lead Spacing | - |
Submit your RFQ for ASMD200F-2 and get a quote within 24 hours.
