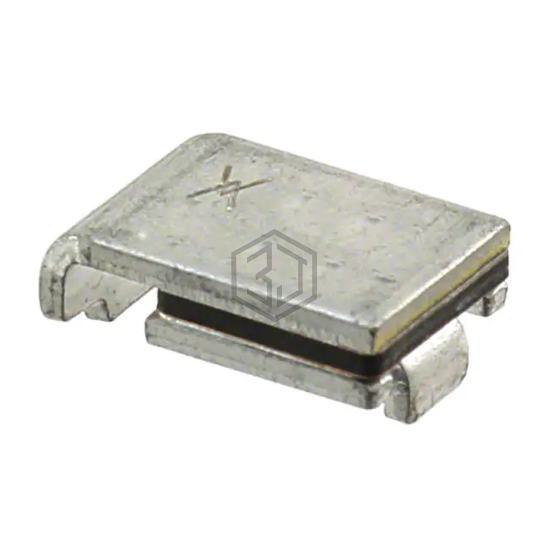

PTC RESET FUSE 33V 1.2A 2SMD
ASMD150F/33-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 33V 1.2A 2SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2-SMD, current - max 40 A.
In Stock: 934
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 33V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 1.2 A |
| Current - Trip (It) | 2.88 A |
| Time to Trip | 14 s |
| Resistance - Initial (Ri) (Min) | 68 mOhms |
| Resistance - Post Trip (R1) (Max) | 230 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Size / Dimension | 0.343" L x 0.250" W (8.70mm x 6.36mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Thickness (Max) | - |
| Lead Spacing | - |
Submit your RFQ for ASMD150F/33-2 and get a quote within 24 hours.
