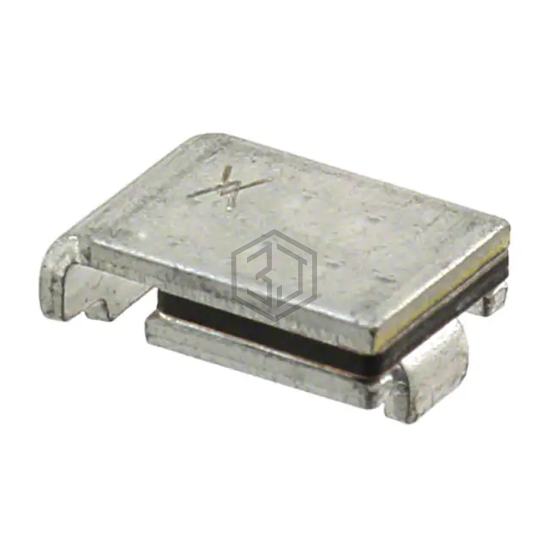

PTC RESET FUSE 60V 370MA 2SMD
ASMD050F-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 60V 370MA 2SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2-SMD, current - max 10 A.
In Stock: 511
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Max | 10 A |
| Current - Hold (Ih) (Max) | 370 mA |
| Current - Trip (It) | 980 mA |
| Time to Trip | 20 s |
| Resistance - Initial (Ri) (Min) | 290 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.4 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.125" (3.18mm) |
| Lead Spacing | - |
Submit your RFQ for ASMD050F-2 and get a quote within 24 hours.
