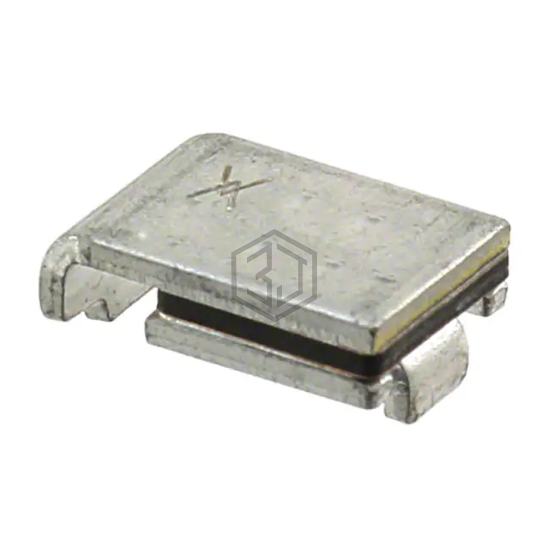

PTC RESET FUSE 60V 230MA 2SMD
ASMD030F-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 60V 230MA 2SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2-SMD, current - max 10 A.
In Stock: 3,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Max | 10 A |
| Current - Hold (Ih) (Max) | 230 mA |
| Current - Trip (It) | 590 mA |
| Time to Trip | 12 s |
| Resistance - Initial (Ri) (Min) | 980 mOhms |
| Resistance - Post Trip (R1) (Max) | 4.8 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.125" (3.18mm) |
| Lead Spacing | - |
