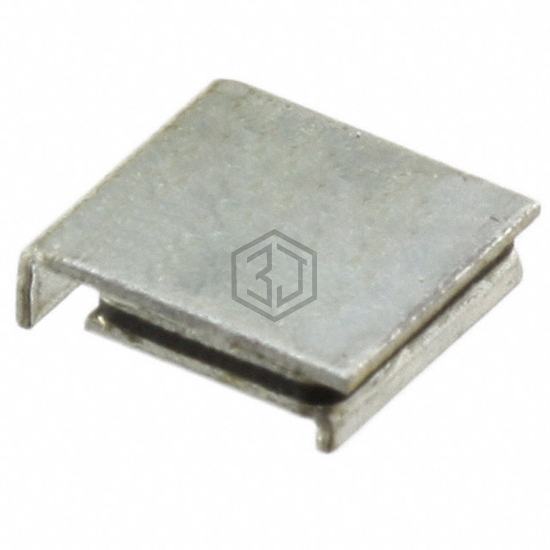

PTC RESET FUSE 16V 800MA 2SMD
AHS080-2018-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 800MA 2SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2-SMD, current - max 70 A.
In Stock: 16,883
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 70 A |
| Current - Hold (Ih) (Max) | 800 mA |
| Current - Trip (It) | 2 A |
| Time to Trip | 9 s |
| Resistance - Initial (Ri) (Min) | 130 mOhms |
| Resistance - Post Trip (R1) (Max) | 550 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Size / Dimension | 0.200" L x 0.180" W (5.08mm x 4.58mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.060" (1.52mm) |
| Lead Spacing | - |
Submit your RFQ for AHS080-2018-2 and get a quote within 24 hours.
