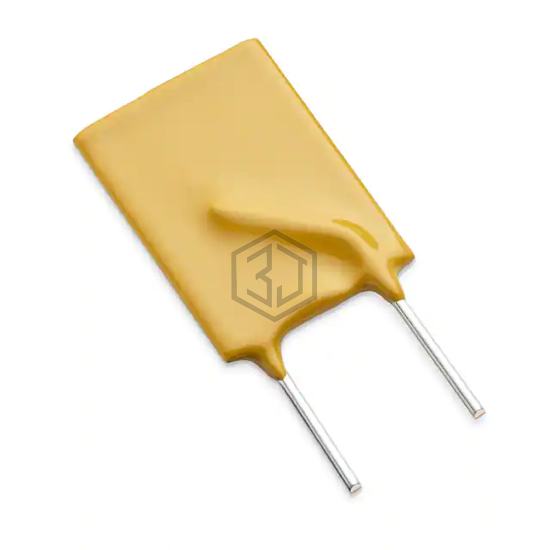

PTC RESET FUSE 14A 16V RAD
AHRL1400 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 14A 16V RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Disc, current - max 100 A.
In Stock: 769
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 14 A |
| Current - Trip (It) | 28 A |
| Time to Trip | 16 s |
| Resistance - Initial (Ri) (Min) | 3.1 mOhms |
| Resistance - Post Trip (R1) (Max) | 4.8 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.685" L x 0.142" W (17.40mm x 3.60mm) |
| Height - Seated (Max) | 1.039" (26.40mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.400" (10.15mm) |
