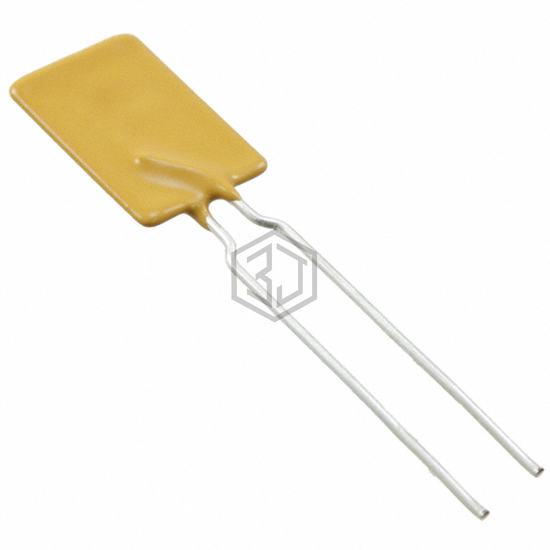

PTC RESET FUSE 16V 6.5A RADIAL
AHRF650 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 6.5A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Disc, current - max 100 A.
In Stock: 7,354
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 6.5 A |
| Current - Trip (It) | 7 A |
| Time to Trip | 7 s |
| Resistance - Initial (Ri) (Min) | 9 mOhms |
| Resistance - Post Trip (R1) (Max) | 26 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.500" L x 0.118" W (12.70mm x 3.00mm) |
| Height - Seated (Max) | 0.874" (22.20mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.199" (5.05mm) |
